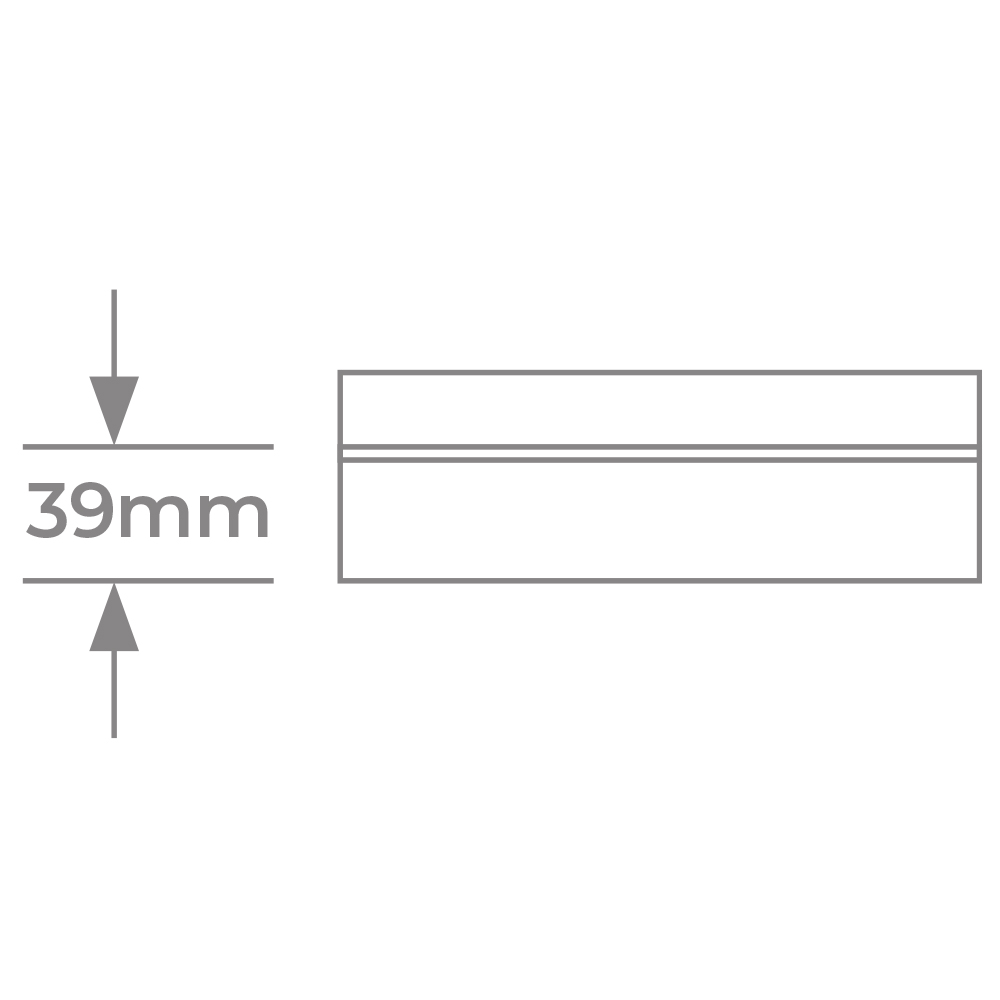

Used to cap off the bottom or unused end of a 90/135 Tee. This is usually fitted to the bottom of a base support to allow easy removal for sweeping and access.
The KW Pro system has been designed for use of all solid fuel, wood, coal, gas, oil, and pellet heating appliances. It operates at temperatures up to 600°C and includes a 25-year warranty. With 25mm high-density mineral insulation injected under high pressure, KW Pro enhances thermal efficiency and ensures reliable flue performance. Its exceptional thermal properties have earned it a G50 classification.
KW Pro offers the largest selection of starting components in the UK, allowing for aesthetically pleasing transitions from stove to chimney. Each component features locking bands for support. Standard bands support up to 1.9 meters of pipe, while structural bands allow an additional meter.
The system is available in stainless and black finishes, with internal diameters ranging from 80mm to 200mm.
Designation number EN1856-2 T600 N1 W V2 L50040 G50/EN1856-1 T200 P1 W V2 L50040
- Brand: Kw Pro
- Distance to Combustibles: 50mm
- Finish: Stainless
- Internal Diameter: 80mm
- Outer Diameter: 125mm
- Grade of Steel: 316 Internal, 304 External
- Thickness of Steel: 0.40mm
- Insulation: Compressed Rockwool
- Temperature Resistance: 600°C
- Approvals: HETAS/CE
- Warranty: 25 year(s)
