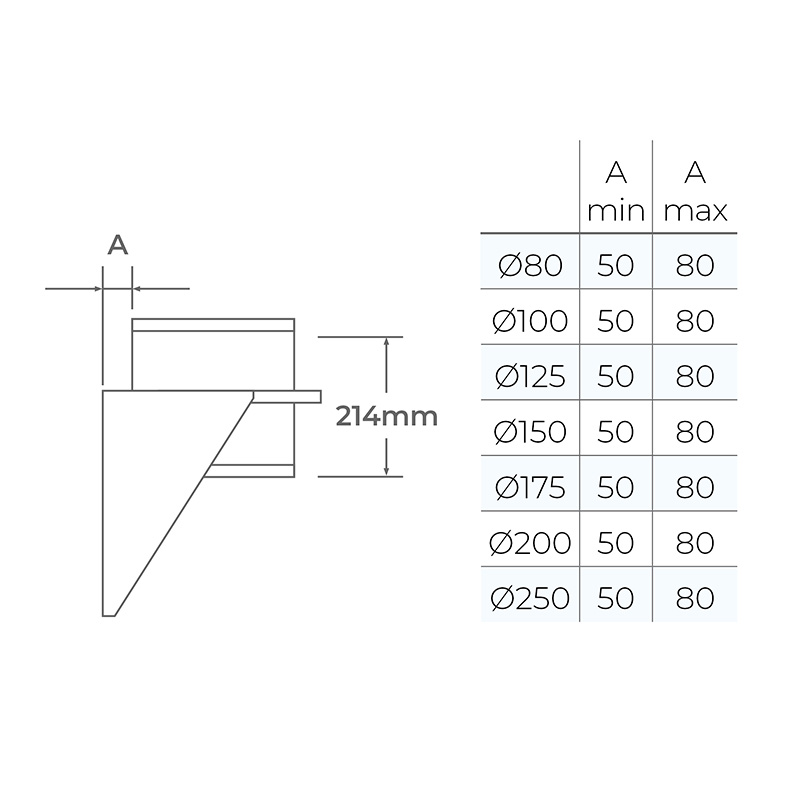

The Adjustable Base Supports are used internally or externally to provide vertical support to the chimney. This support has a small levelling adjustment of 50mm to 80mm from the wall surface. Only recommended fixings should be used to fit this base support to the building surface.
The KW Pro system has been designed for use of all solid fuel, wood, coal, gas, oil, and pellet heating appliances. It operates at temperatures up to 600°C and includes a 25-year warranty. With 25mm high-density mineral insulation injected under high pressure, KW Pro enhances thermal efficiency and ensures reliable flue performance. Its exceptional thermal properties have earned it a G50 classification.
KW Pro offers the largest selection of starting components in the UK, allowing for aesthetically pleasing transitions from stove to chimney. Each component features locking bands for support. Standard bands support up to 1.9 meters of pipe, while structural bands allow an additional meter.
The system is available in stainless and black finishes, with internal diameters ranging from 80mm to 200mm.
Designation number EN1856-2 T600 N1 W V2 L50040 G50/EN1856-1 T200 P1 W V2 L50040
- Brand: Kw Pro
- Distance to Combustibles: 50mm
- Finish: Black
- Internal Diameter: 100mm
- Outer Diameter: 150mm
- Grade of Steel: 316 Internal, 304 External
- Thickness of Steel: 0.40mm
- Insulation: Compressed Rockwool
- Temperature Resistance: 600°C
- Approvals: HETAS/CE
- Warranty: 25 year(s)
